Suitable for Polyethylene Terephthalate (PET) Good adhesion which gives it excellent rub resistance Fast drying Main Characteristics: Finish: Semi-Gloss, Ink Type: One Pack / Solvent-Based Substrates: Polyethylene Terephthalate (PET) USER INFORMATION Mesh P90-48 to P140-34 Monofilament, N90-44 to N140-35 Monofilament Stencil Type: All solvent-resistant direct Emulsion photo-stencils Recommended: PU-220 Diazol Universal, DE-442Polyzol Direct Squeegee: 70-75, 85-90 durometer hardness polyurethane squeegees. Coverage: 55-65 m2/Kg (Polyester Mesh No. P120-34 to N120-35)

SUBSTRATES:

Different of PET materials

FINISHED PRODUCTS:

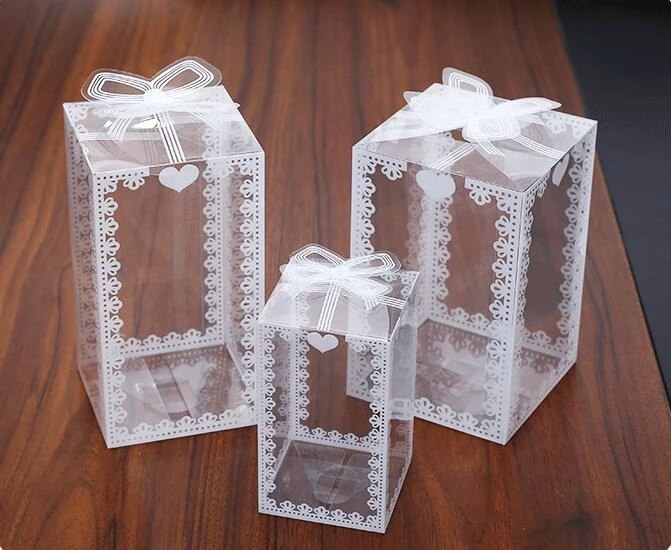

Different kinds of daily necessities made with PET, bottle and PET film

TECHNICAL PARAMETER:

Items Appear ancechroma Thinness Viscosity Glossiness Flow ability resin

Performance Refer to color sample 8%-15% less than 80-120P 70-75 20-30mm/s≥45%

APPLICATION INFORMATION: MESH: Monofilament mesh, 150-350mesh SQUEEGEE: 65-85 durometer solvent resistance blades, such as PU COVERAGE: 30㎡/kg under 300mesh DRY: Force to dry with hot dryer below120℃is allowed. or air dry (20mins surface dry,120mins full dry) ADDITIVES: J-S1833 thinner or J-S1810 fast dry, J-S1805 mid dry and J-S1800 slow dry. CLEAN UP: Use organic solvent to clean the stencil,

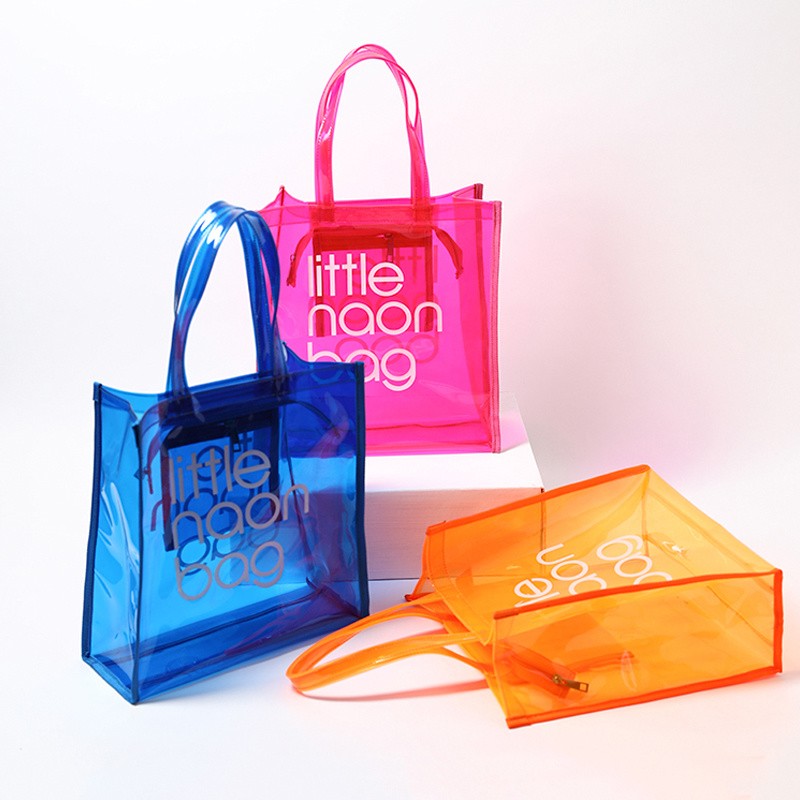

SUBSTRATES Soft PVC, acrylics, paper, wood and imitated nylon.   END USES Ait-charged toy, manmade leather products, plastic commodity, shoes, cap, ball, travel bag.

• can be printed through any type of mesh, but for the best printing results it is recommended that Monofilament mesh, 60-120T is used.
• SQUEEGEE 65-85 durometer solvent resistance blade, such as PU COVERAGEApprox. 30㎡/kg under 100T mesh   CURE Force to dry with hot air dryer below 60℃ is allowed.

The SW- G PVC series of screen ink carries a wide range of opaque colors and its gloss finishing is very suitable for high quality jobs. This ink series exhibits excellent adhesion on a wide variety of substrates. Application

• PVC: Rigid, Flexible and Self-Adhesive
• Acrylic, Crystal Polystyrene and ABS
• Polycarbonate
• Metalized Foil
• 1Kg of ink will print an area of approximately 55-60 square meters with 120 – 34 threads / cm. Mesh count monofilament polyester or nylon and 10% dilution.

SUBSTRATES Soft PVC, acrylics, paper, wood and imitated nylon.   END USES Air-charged toy, manmade leather products, plastic commodity, shoes, cap, ball, travel bag. SQUEEGEE 65-85 durometer solvent resistance blade, such as PU   COVERAGE Approx. 30㎡/kg under 100T mesh   CURE Force to dry with hot air dryer below 60℃ is allowed.

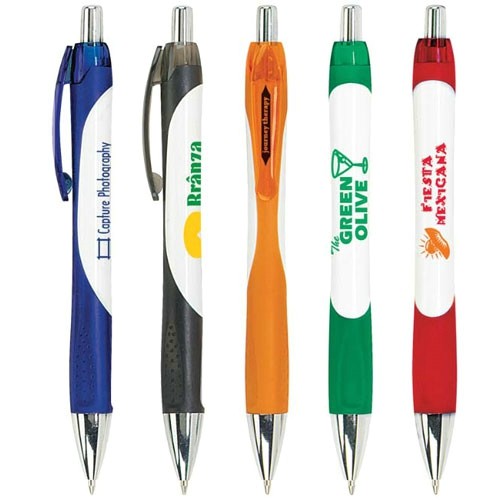

GVY Can be printed on PVC plastic, polycarbonate plastic, acrylic and CAB. The ink surface is highly flexible. and chemical resistance, quick drying and has a high gloss, resistant to light and weather conditions   Finish Gloss Ink Type One Pack / Solvent-Based Drying : Jet dry : 55-65 C 15-20 seconds ํ.  Air dry : Not over 10 minutes   Thinning 10-15 % Thinner 5099, 5-10 % Thinner 2938, Hot shop condition 10-15 % Retarder 2939

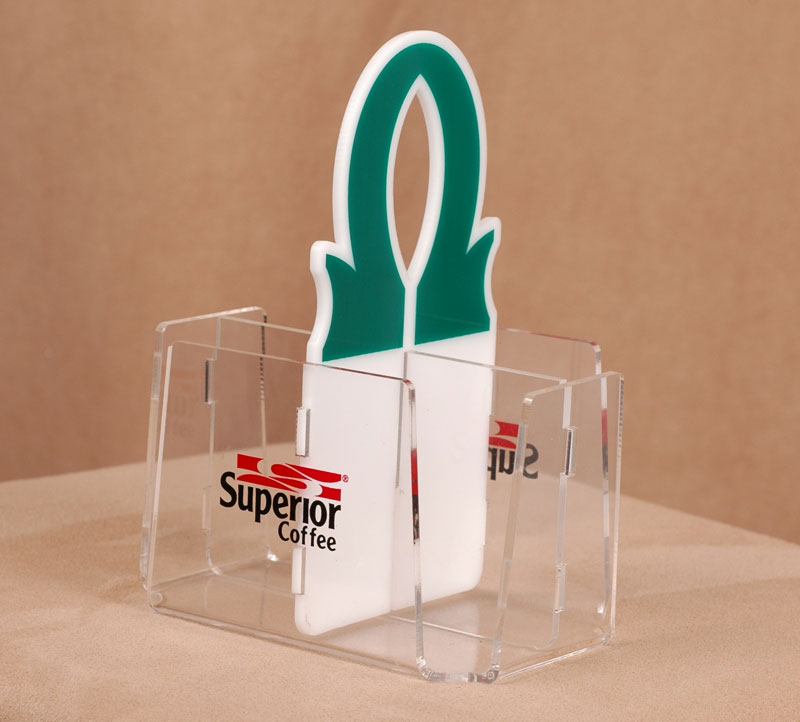

AC is a solvent-based screen printing ink specially designed for printing onto Acrylics, Polystyrene/PS plastics, Polycarbonates, ABS and rigid PVC plastics. This ink system has excellent adhesion and impact resistance and Gives a high gloss finish. AC does not react with plastic substrates and can therefore be wiped clean without leaving a color stain.

• AC can be printed through any type of mesh, but for the best printing results it is recommended that P90-48 to P140-34 mesh is used.
• AC can be jet-dried at 70°C (158°F) within 15-30 seconds. The gloss finish of the ink will be severely affected if dried at higher temperatures (above 80°C)
